$27.28 NZD

Description:

Origin: Mainland China
Model Number: SK6
Interface Type: PCI Express
Package: Yes
Type: Add On Cards
Choice: yes

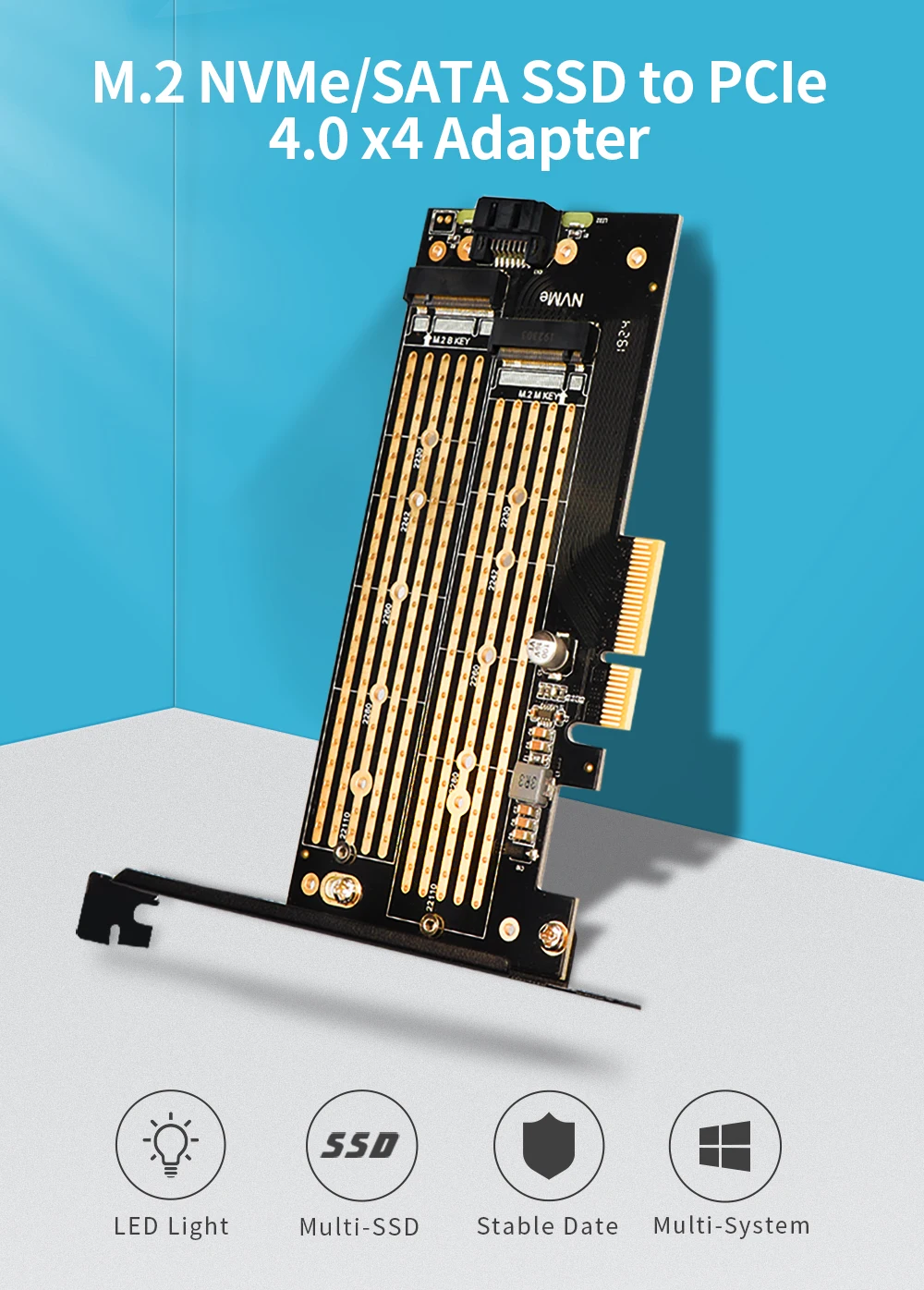

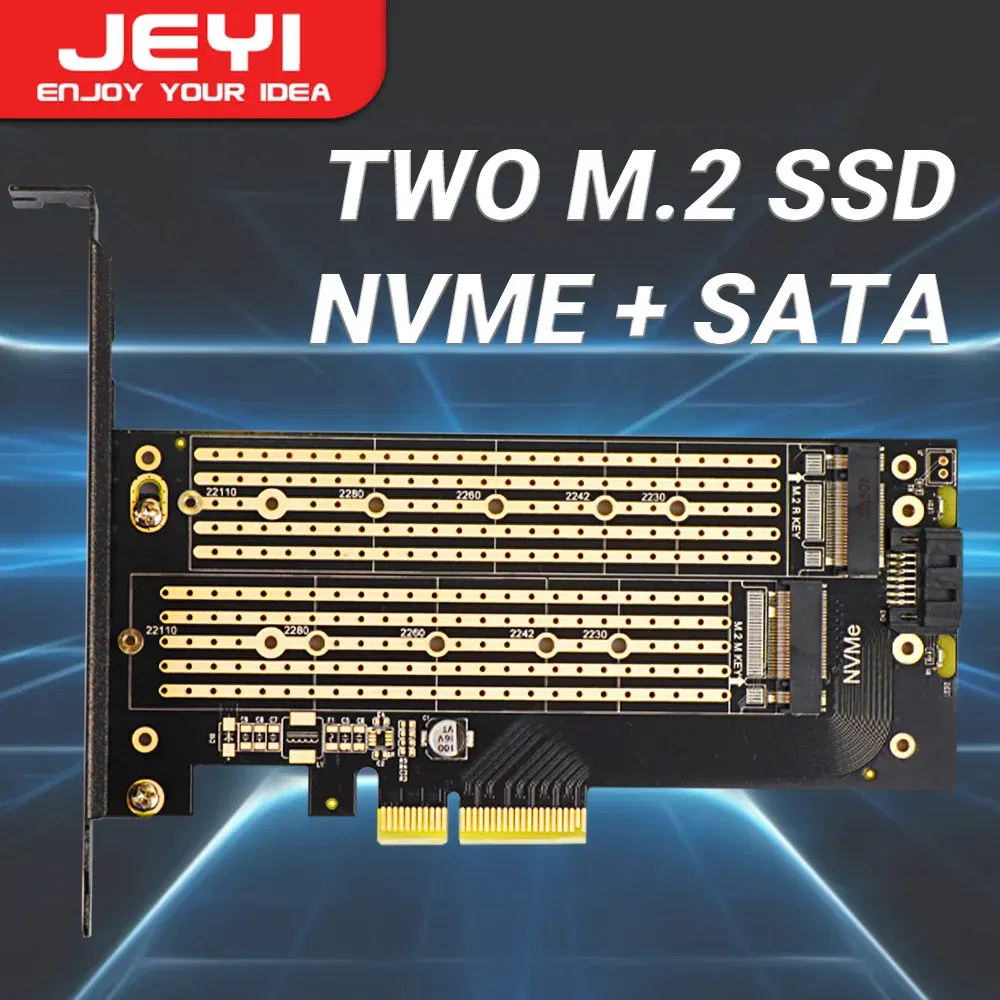

JEYI SK6 Dual M.2 PCIE Adapter for SATA or PCIE NVMe SSD with Advanced Heat Sink Solution,M.2 SSD NVME (m Key) and SATA (b Key) 22110 2280 2260 2242 2230 to PCI-e x 4 Host Controller Expansion Card


➤ Supports two M.2 SSD simultaneously (One SATA interface and one NVMe interface)

➤ Converts one M.2 NVMe SSD (M Key) interface to PCIe 4.0 x4 interface (PCIe 3.0 2.0 1.0 Compatible), Converts one M.2 SATA SSD (B Key or B+M Key) interface to SATA 6Gbps interface (SATA cable connection required).

➤ With advanced heat sink solution,PCB 24 X 5 copper hole effective ventilation heat dissipation,Including 2 heat sinks

➤ Supports M.2 SSD size 2230, 2242, 2260, 2280, 22110mm

➤ Including a regular size slot brackets for flexible system chassis installation. LED power and data transfer status. No driver installation required


NOTE :


You are kindly reminded that the 7-pin SATA cable must be connectedto motherboard if you want to read the M.2 SATA SSD (Key B).

You are kindly reminded that this adapter only support PCIe X4 X8X16 slot. DO NOT support PCIe X1 and PCI slot.


Supports NVME & SATA Dual M.2 SSD

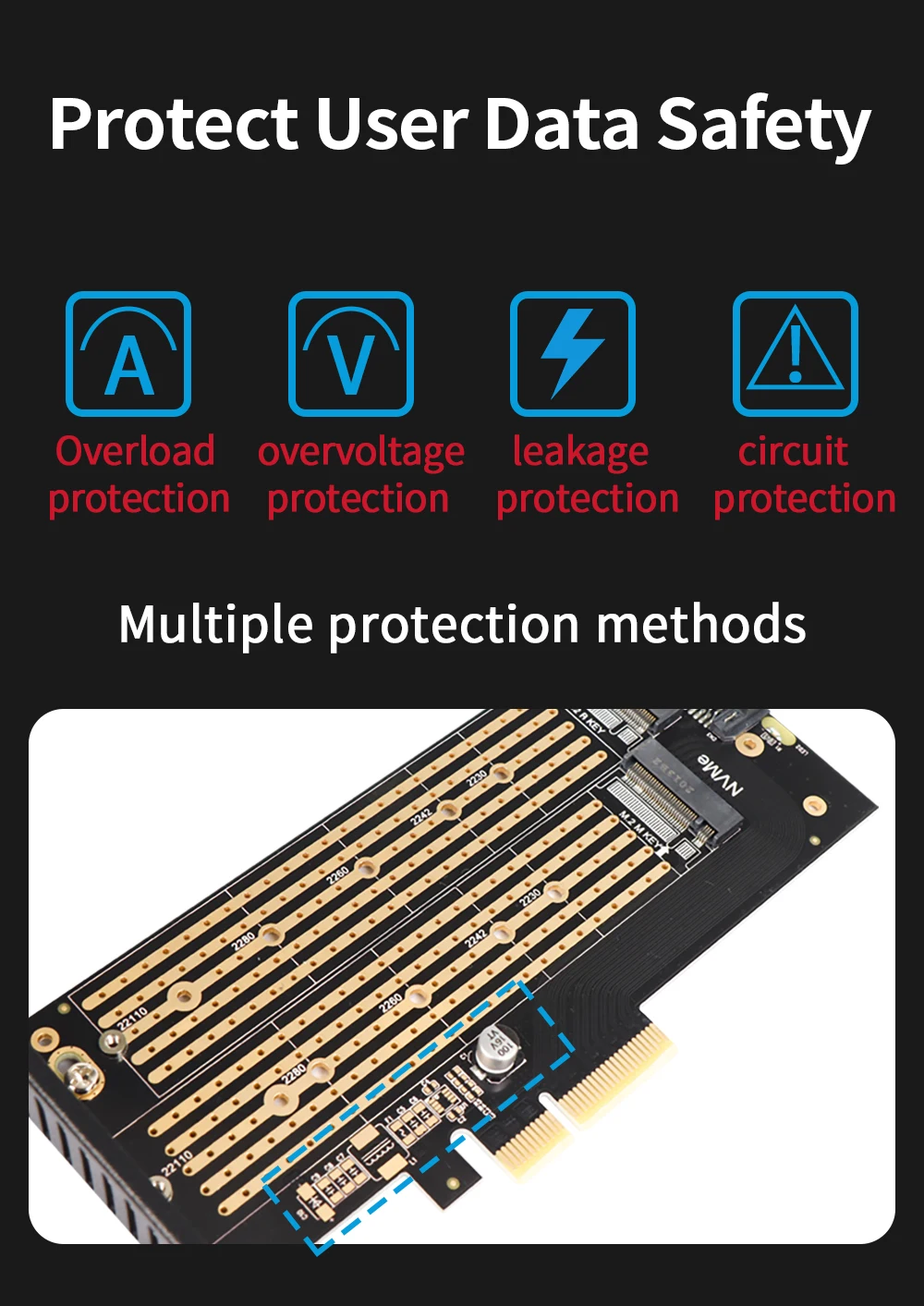

Protect User Date Safety


1. Overload protection
2. overvoltage protection
3. leakage protection
4. circuit protection

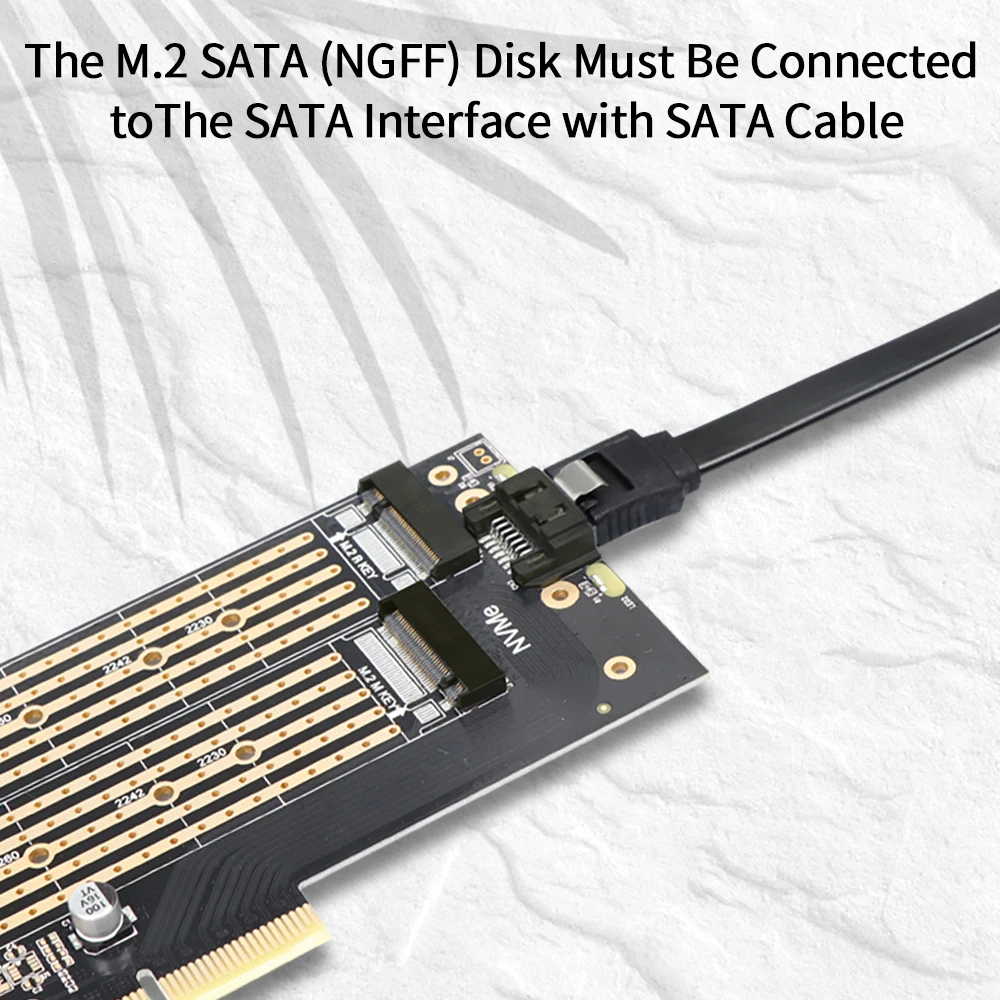

The M.2 SATA (NGFF) Disk Must Be Connected toThe SATA Interface with SATA Cable

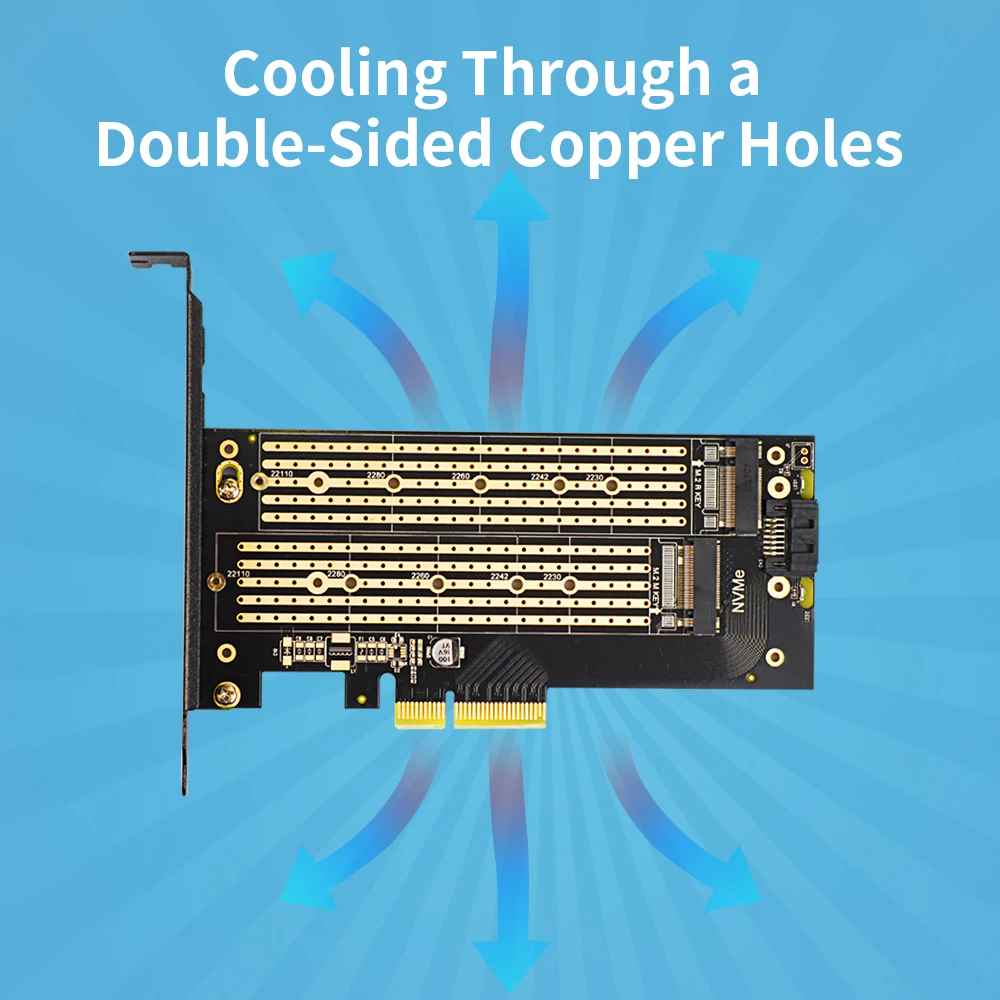

Cooling Through a Double-Sided Copper Holes

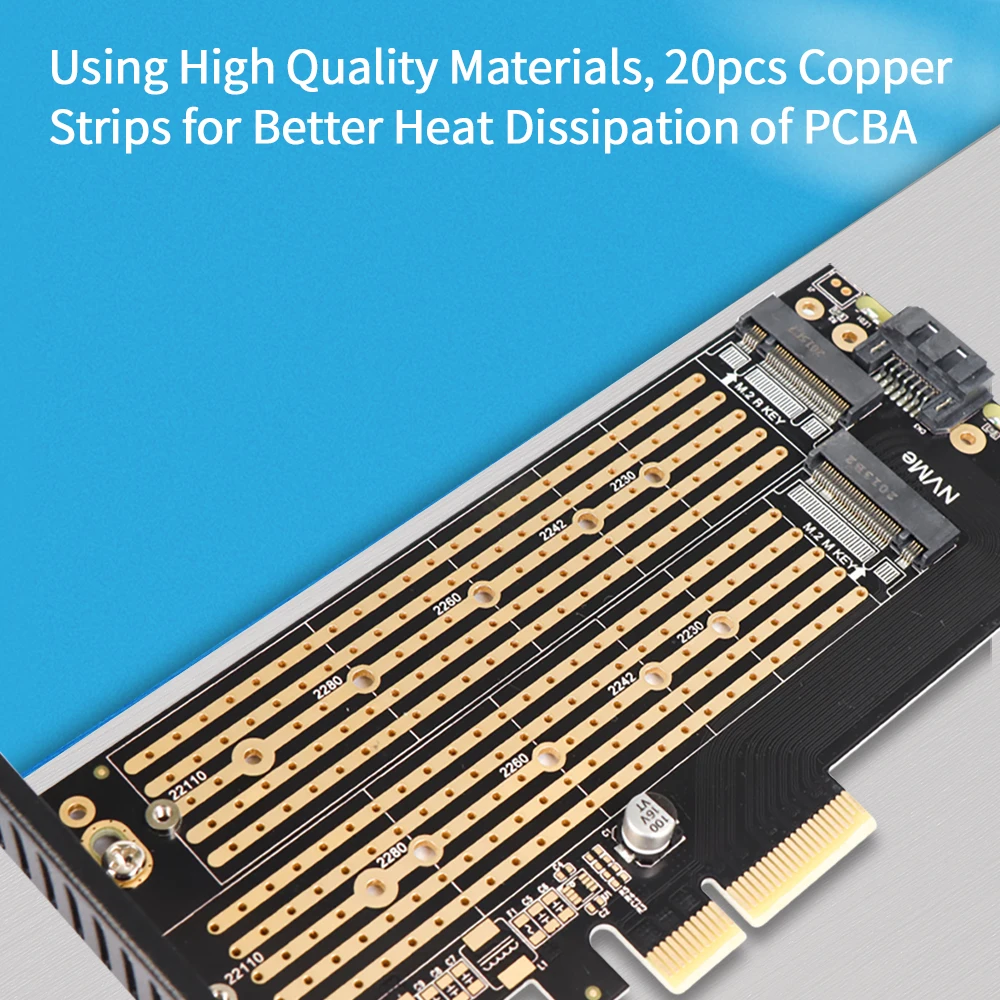

Using High Quality Materials, 20ps Copper Strips for Better Heat Dissipation of PCBA

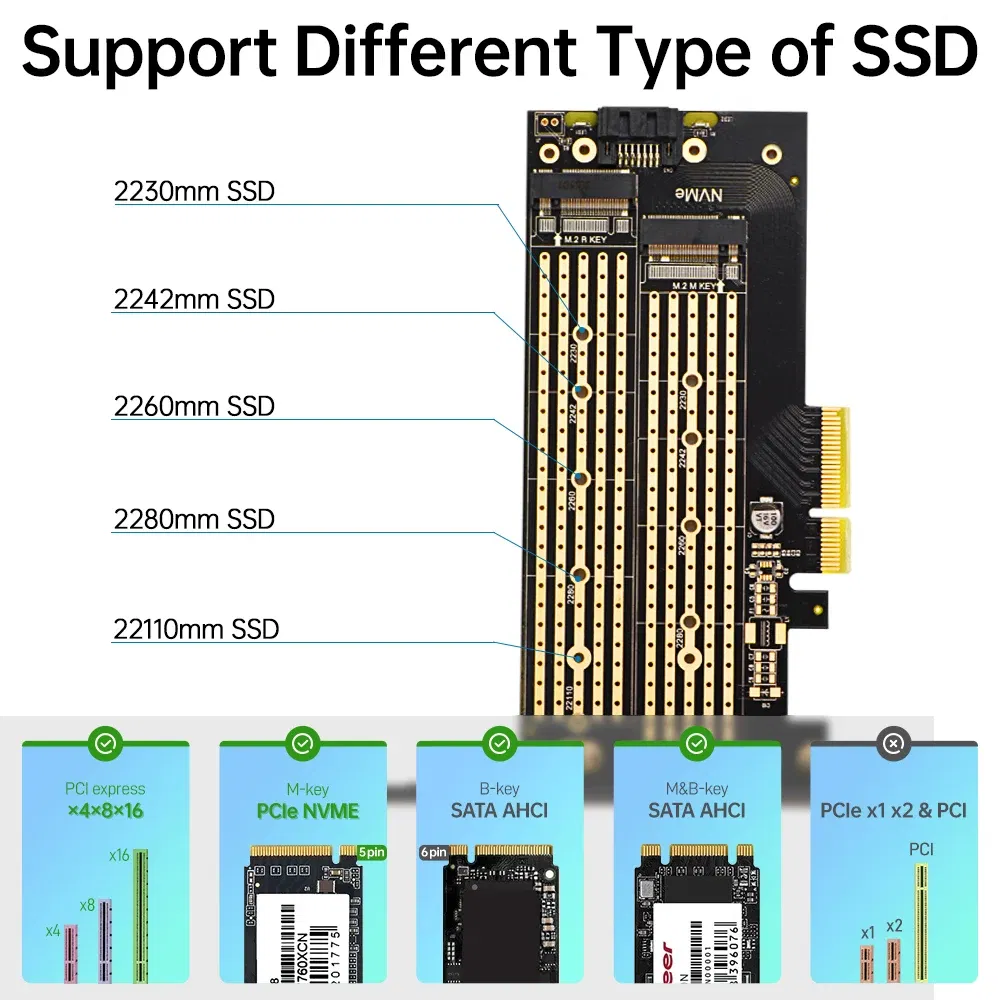

Widely Compatibility


1. Supports PCIe Gen3 and PCIe Gen2 M.2 NGFF 110mm, 80mm, 60mm, 42mm,30mm SSD


2. Supports PCIe 1.0, PCIe 2.0, PCIe 3.0 and PCIe 4.0 motherboard


3. supports PCIe X4 X8X16 slots

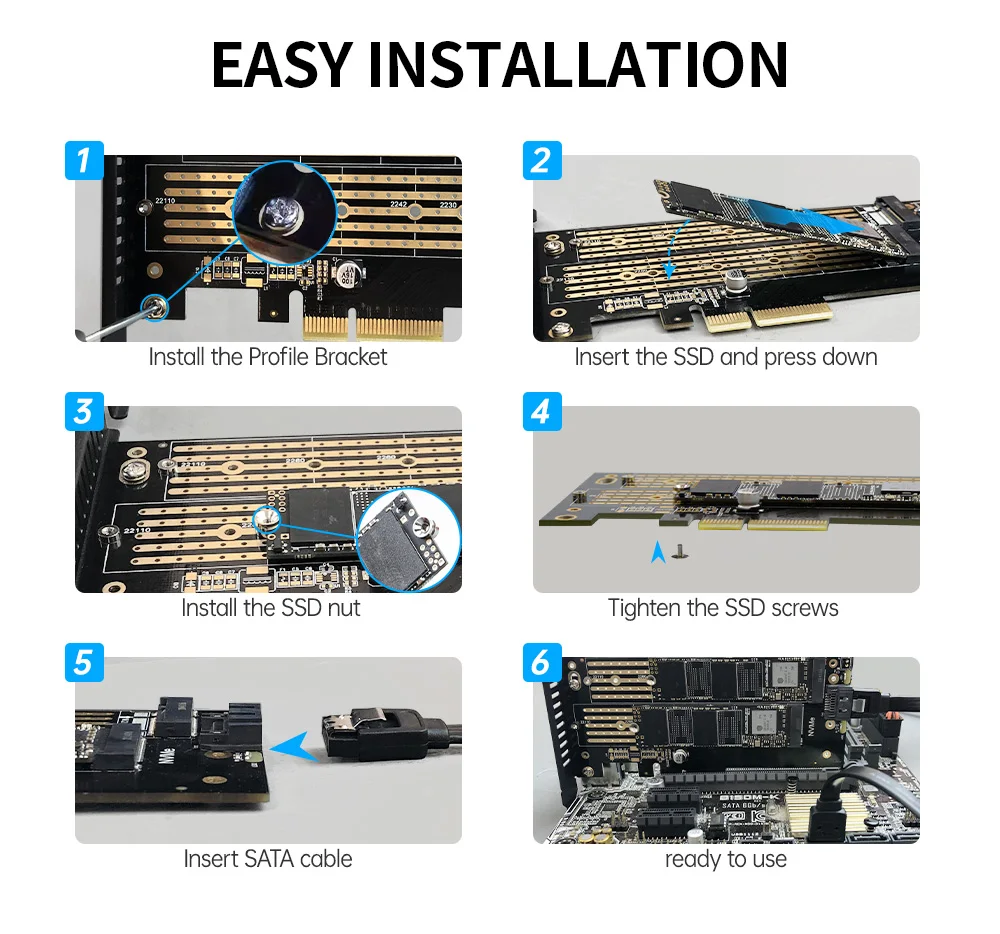

Eazy Installation


1.Install the Profile Bracket
2.Insert the SSD and press down
3. Install the SSD nut
4.Tighten the SSD screws
5.Insert SATA cable
6.ready to use

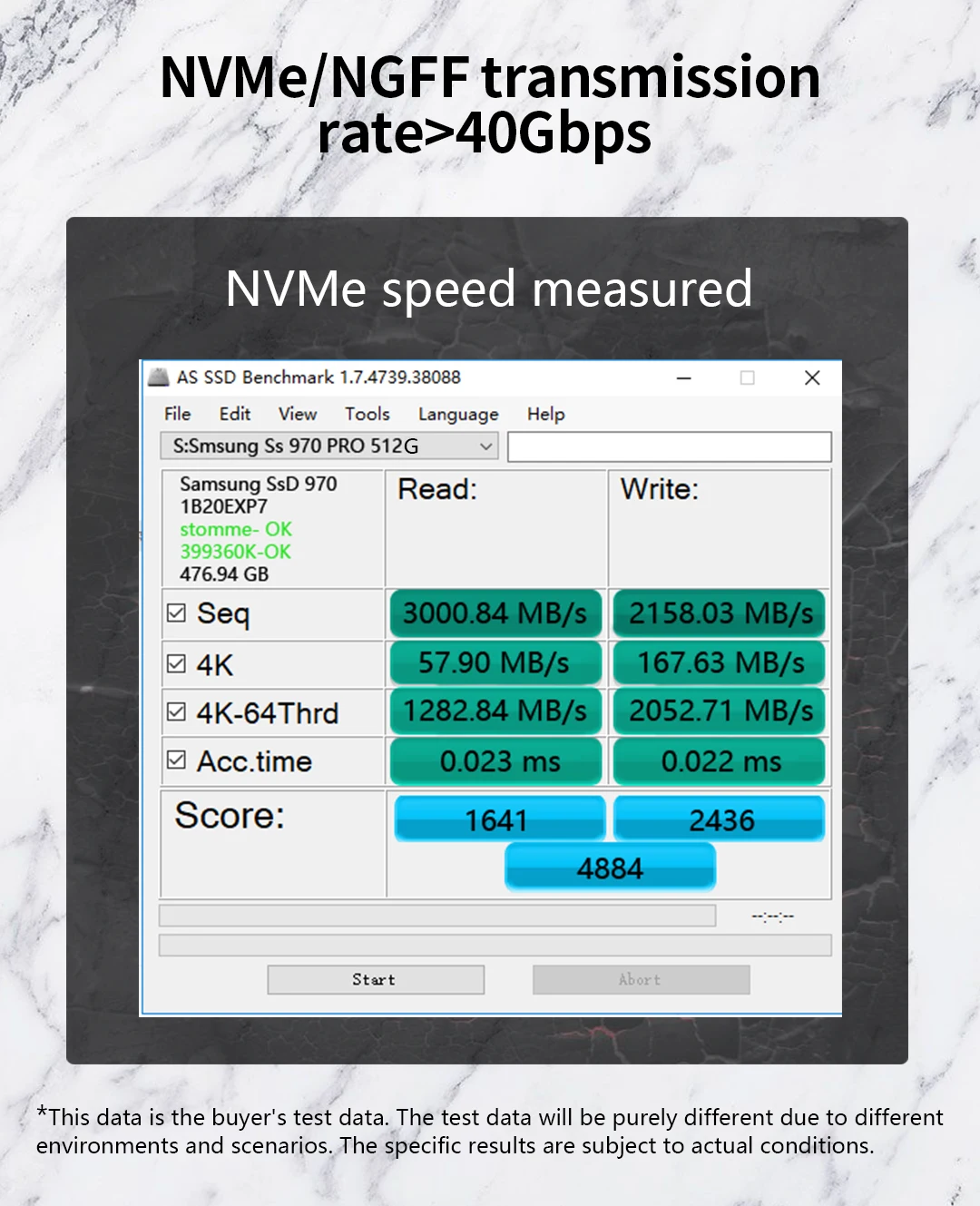

NVME/NGFF Transmission Rate> 40Gbps

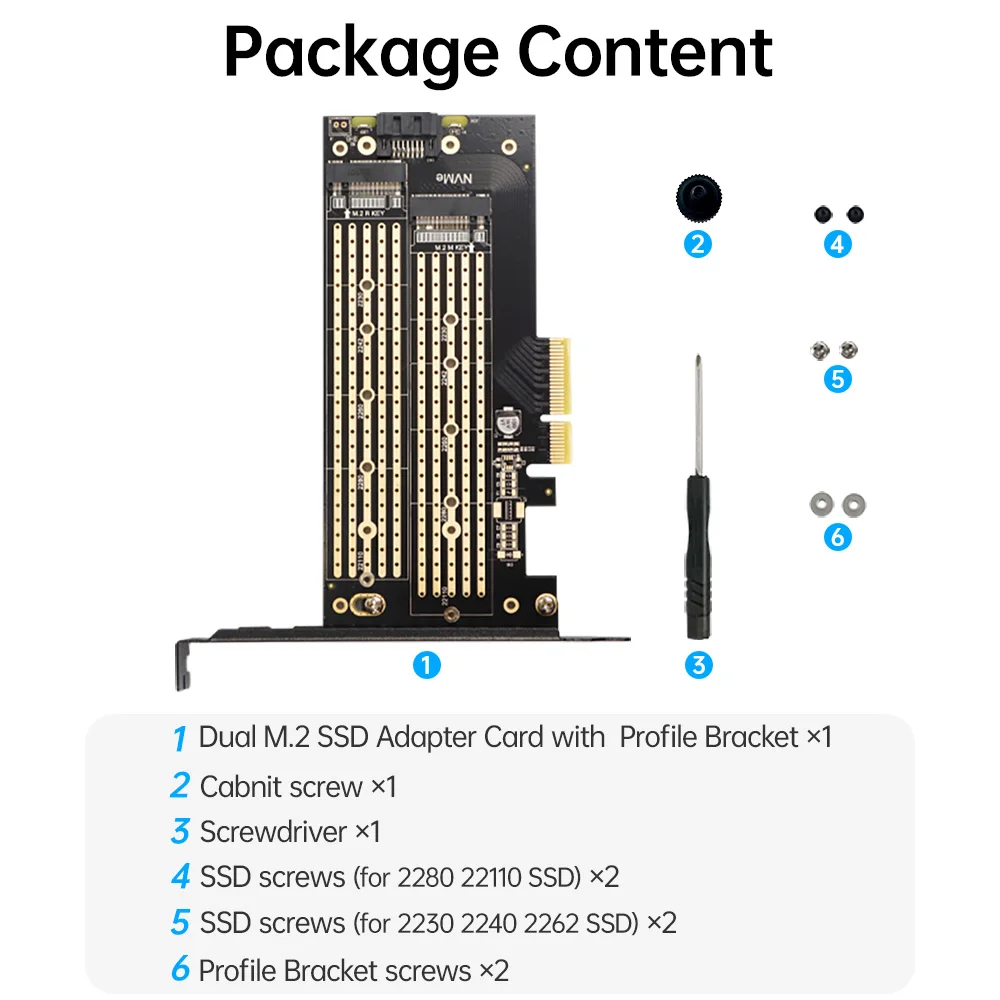

Package Includes


Dual M.2 SSD Adapter Card with Profile Bracket ×1
Cabnit screw ×1
Screwdriver ×1
SSD screws (for 2280 22110 SSD) ×2
SSD screws (for 2230 2240 2262 SSD) ×2
Profile Bracket screws ×2
